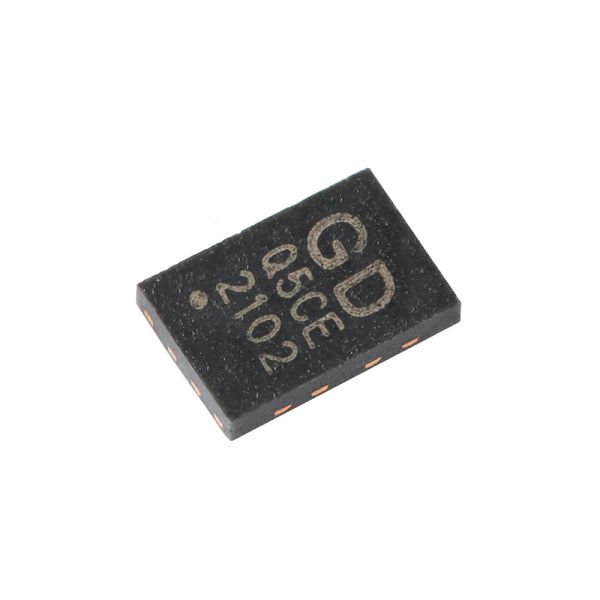

GD25Q16CEIGR 3.3V Uniform Sector Dual and Quad Serial Flash
16M-bit Serial Flash memory with 2048K-byte capacity featuring uniform sector architecture and support for Standard, Dual, and Quad SPI interfaces.
Key Features
- 16M-bit Capacity: 2048K-byte memory with 256 bytes per programmable page
- Fast Program/Erase Speed: Page Program: 0.6ms typical, Sector Erase: 45ms typical, Block Erase: 0.15/0.25s typical, Chip Erase: 7s typical
- Multiple SPI Interfaces: Standard SPI (SCLK, CS#, SI, SO, WP#, HOLD#), Dual SPI (SCLK, CS#, IO0, IO1, WP#, HOLD#), Quad SPI (SCLK, CS#, IO0, IO1, IO2, IO3)
- Flexible Architecture: Uniform 4K-byte sectors and 32/64K-byte blocks
- High Speed Performance: 120MHz fast read clock frequency, Dual I/O up to 240Mbits/s, Quad I/O up to 480Mbits/s
- Low Power Consumption: 1μA typical deep power down and standby current
- Write Protection: Software/hardware write protection with WP# pin control and top/bottom block protection
- Security Features: 128-bit unique ID per device, 4x256-byte security registers with OTP locks, discoverable parameters (SFDP) register
- High Endurance: Minimum 100,000 program/erase cycles
- Power Supply: Single 2.7-3.6V full voltage range operation
Pin Description
| Pin Name |
I/O |
Description |
| CS# |
I |
Chip Select Input |
| SO (IO1) |
I/O |
Data Output (Data Input Output 1) |
| WP# (IO2) |
I/O |
Write Protect Input (Data Input Output 2) |
| VSS |
|
Ground |
| SI (IO0) |
I/O |
Data Input (Data Input Output 0) |
| SCLK |
I |
Serial Clock Input |
| HOLD# (IO3) |
I/O |
Hold Input (Data Input Output 3) |
| VCC |
|
Power Supply |
