74LVC1G00GW-Q100H Single 2-Input NAND Gate

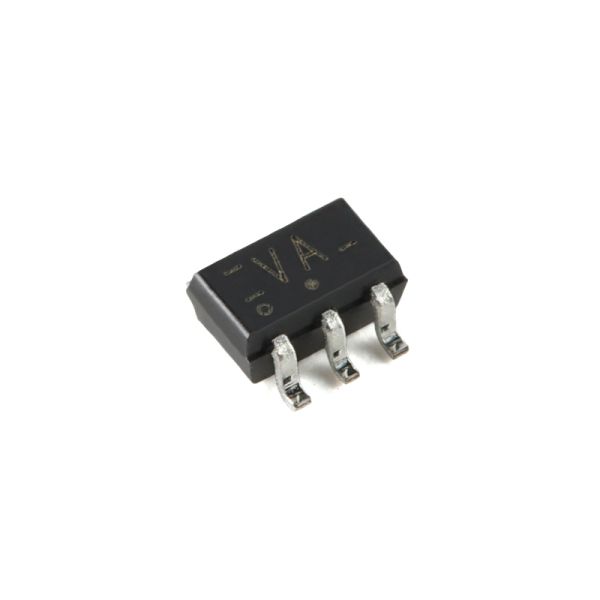

A high-performance single 2-input NAND gate featuring voltage translation capability. Inputs can be driven from either 3.3V or 5V devices, enabling seamless use as translators in mixed 3.3V and 5V environments.
Key Features
- Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Specified from -40°C to +85°C and from -40°C to +125°C
- Wide supply voltage range from 1.65V to 5.5V
- Overvoltage tolerant inputs to 5.5V
- High noise immunity
- CMOS low power dissipation
- IOFF circuitry provides partial Power-down mode operation
- ±24mA output drive (VCC = 3.0V)
- Latch-up performance exceeds 250mA
- Direct interface with TTL levels
- Complies with JEDEC standards:
- JESD8-7 (1.65V to 1.95V)
- JESD8-5 (2.3V to 2.7V)
- JESD8C (2.7V to 3.6V)
- JESD36 (4.5V to 5.5V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000V
Product Variants
| Type Number |
Temperature Range |
Package Description |
| 74LVC1G00GW-Q100 |
-40°C to +125°C |
TSSOP5 plastic thin shrink small outline package; 5 leads; body width 1.25mm SOT353-1 |
| 74LVC1G00GV-Q100 |
-40°C to +125°C |
SC-74A plastic surface-mounted package; 5 leads SOT753 |
